Description
Socket AM5
Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
243.84mmx243.84mm
Specifications
| CHIPSET | AMD B650 |
|---|---|
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| MEMORY | 4x DDR5, Maximum Memory Capacity 128GB |
| ONBOARD GRAPHICS | 1x HDMI™ |
| EXPANSION SLOT | 2x PCI-E x16 slot |
| STORAGE | 2x M.2 slot |
| USB | 4x USB 2.0 (Front) |
| PCB DIMENSION | mATX |
Product Details
- Brand: MSI

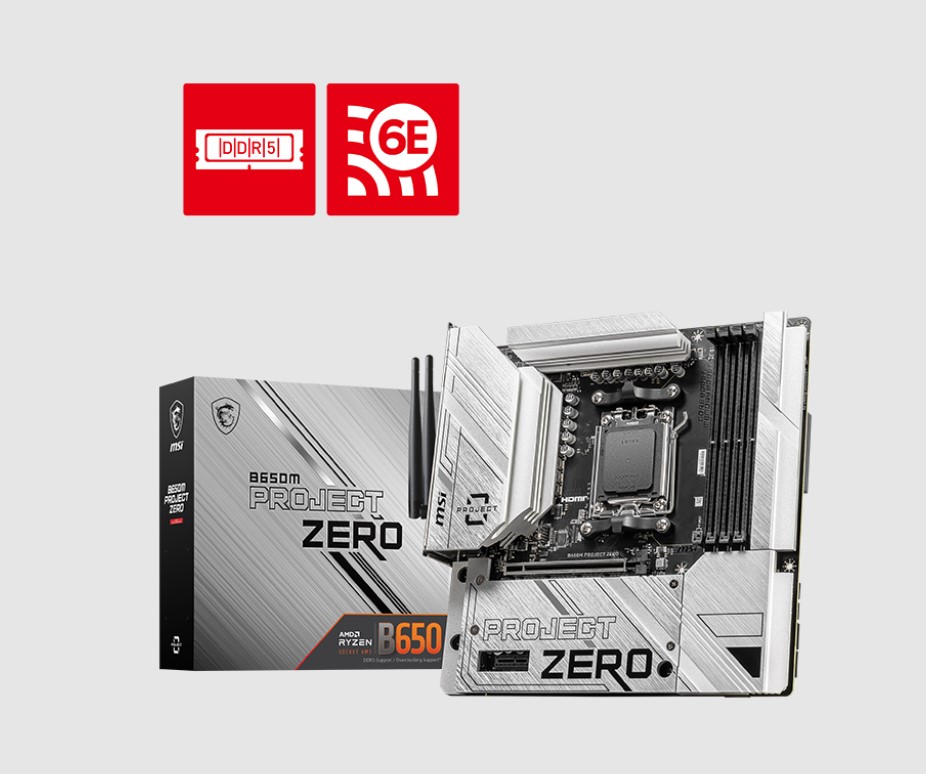

- Manufacturer Part No: B650M PROJECT ZERO
- Our Part No: MBM-B650MPROJECTZERO
- Warranty: 36 Months (3 Years)
- Shipping Weight: 1.90 kg
Buying From BITS Perth
Supplied by BITS Perth, a Western Australian IT provider based in Clarkson. Prices are in AUD and include GST. Flat-rate shipping is $15 Australia-wide and free on orders over $1,000. Orders ship in 2–3 business days with full manufacturer warranty.
Need advice or a bulk quote? Call 0477 032 032 or email admin@bitsperth.com.au.
Reviews
There are no reviews yet.
