Description

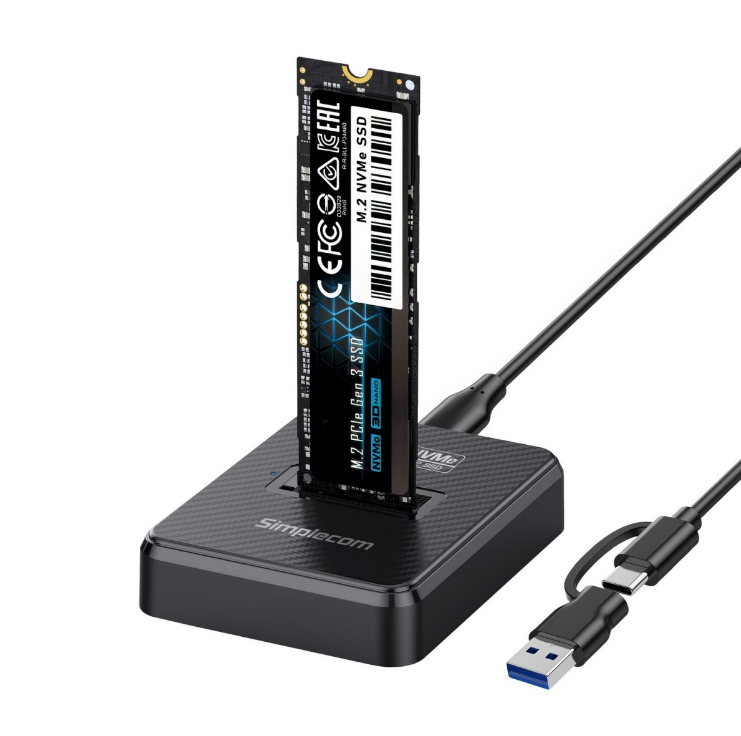

Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps
Quick Overview
Dual Protocol support for both NVMe and SATA M.2 SSD
Compatible with M Key or B+M Key M.2 SSD
USB-C interface compliant with USB 3.2 Gen 2 standard
Supports data transfer rates up to 10Gbps
USB-C and USB-A combo cable, convenient for use on different devices
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
Plug and play, no driver required
LED indicator for power and activity status
USB powered, no external power required
Description
Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps
SD511 is a high-speed, dual-protocol M.2 SSD Docking Station designed for both NVMe and SATA M.2 SSDs. Compatible with M Key and B+M Key M.2 SSDs, it provides a quick and hassle-free way to access M.2 SSD drives instantly through the USB port.
Featuring a USB 3.2 Gen 2 interface, it supports fast data transfer speeds of up to 10Gbps, ensuring efficient file transfers and optimal performance. With UASP and TRIM support, it enhances data transfer speeds, improves efficiency. For added convenience, the included USB-C and USB-A combo cable allows flexible connectivity across different devices. With a plug-and-play design, no drivers are needed for quick and hassle-free setup.
Compact, efficient, and easy to use, this M.2 SSD Docking Station is the perfect solution for high-speed data access and management.
Features
Dual Protocol support for both NVMe and SATA M.2 SSD
Compatible with M Key or B+M Key M.2 SSD
USB-C interface compliant with USB 3.2 Gen 2 standard
Supports data transfer rates up to 10Gbps*
USB-C and USB-A combo cable, convenient for use on different devices
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
Plug and play, no driver required
LED indicator for power and activity status
USB powered, no external power required
Specifications
Model: SD511
Material: ABS Plastic
Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Compatible M.2 Type: NVMe M.2, SATA M.2
Compatible M.2 Size: 2230 / 2242 / 2260 / 2280 / 22100
Dimension: 66 x 51 x13mm (LxWxH)
Weight: 40g
Operating System Support: Windows 7 and later, macOS 10.8 and later, Linux
Package Contents
1x SD511 M.2 SSD Docking Station
1x USB-C + USB-A combo cable
1x User Manual
Important Note
* SD511 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
Product Details
- Brand: Simplecom
- Manufacturer Part No: SD511
- Our Part No: HXSI-SD511
- Warranty: 12 Months (1 Year)
- Shipping Weight: 0.10 kg
