Description

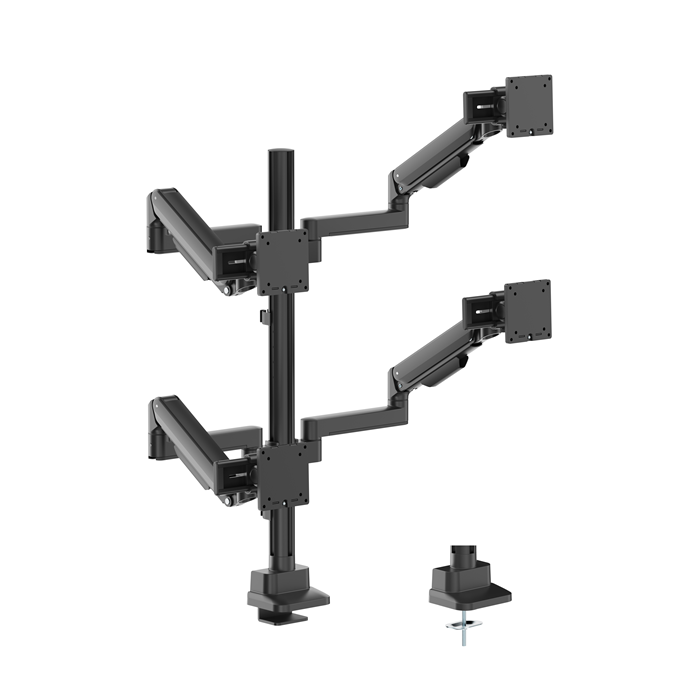

Brateck Modular Mechanical Spring Quad Monitor Arm with Sliders, from 17′-40′, weight capacity (per flat screen) 11kg, 180° Rotation (Black)
Combine exceptional quality with innovative design. The one-way bearing mechanism and one-touch height adjustment ensure smooth, effortless monitor positioning, while precision sliders deliver seamless alignment of monitors. Installation is quick and hassle-free thanks to the user-friendly quick-release VESA plate and top-mount base. Crafted from premium materials and available in three colors, it provides a high-performance solution that enhances both functionality and aesthetics in any workspace.
FEATURES
●One-Way Bearing Head Tilting Structure: eliminates friction when tilting for effortless adjustment
●Quick-Release VESA Plate: for easy installation and removal
●Universal Sliders: allow the monitors at a proper ergonomic distance
●Installs from Top Side: installs entirely from above the desk surface
●Wide Range of Movements: allows screen tilting, swiveling, rotation and height adjustments for optimum viewing
●Built-in Cable Management: for an organized and neat workspace
SPECIFICATIONS
Specifications
| Product Category: | Mechanical Spring Monitor Arm |
|---|---|
| Rank: | Super Premium |
| Material: | Aluminum,Steel,Plastic |
| Surface Finish: | Paint Spraying |
| Color: | Black |
| Dimensions: | 1378x136x1225mm (54.3’x5.4’x48.2′) |
| Fit Screen Size: | 17′-40′ |
| Fit Curved Monitor: | Yes |
| Screen Quantity: | 4 |
| Weight Capacity (per screen): | 2-11kg (4.4lbs-24.2lbs) |
| Weight Capacity for Curved Screen (per screen): | 2~10kg (4.4lbs~22lbs) |
| VESA Compatible: | 75×75,100×100 |
| Tilt Range: | +75°~-45° |
| Swivel Range: | +90°~-90° |
| Screen Rotation: | +180°~-180° |
| Arm Full Extension: | 611mm (24.1′) |
| Pole Height: | 900mm (35.4′ ) |
| Installation: | Clamp,Grommet |
| Suggested Desktop Thickness: | Clamp:10~50mm Grommet:10~50mm (Clamp:0.39’~2′ Grommet:0.39’~2′) |
| Quick Release VESA Plate: | Yes |
| Cable Management: | Yes |
| Accessory Kit Package: | Normal/Ziplock Polybag |
Product Details
- Brand: Brateck
- Manufacturer Part No: LDT86S-C048S-BLK
- Our Part No: MABT-LDT86S-C048S-BLK
- Warranty: 12 Months (1 Year)
- Shipping Weight: 19.00 kg
