Description

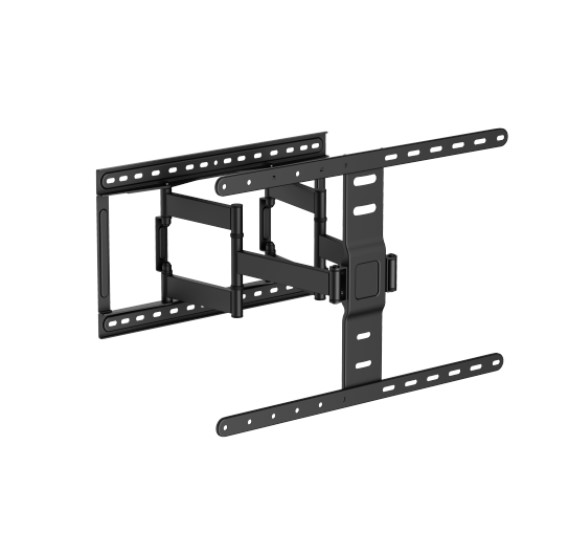

Brateck LPA83-466 MODERN ULTRA-SLIM FULL-MOTION TV WALL MOUNT For most 43′-90′ TVs
FEATURES
●Ultra-slim design
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)
●Cable Management: keeps everything organized
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Easy Assembly: Installation is as easy as 1-2-3
SPECIFICATIONS
Metal Sheet Thickness:
Bracket Arm THK=3.0mm pickling sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.12′ pickling sheet,VESA Panel THK=0.098′ pickling sheet,Wall Plate THK=0.098′ pickling sheet)
Pipe Size: 40x15x1.2mm Square Steel Tube (1.6’x0.59’x0.047′ Square Steel Tube)
Specifications
| Product Category: | Full-motion TV Wall Mount |
|---|---|
| Rank: | Standard |
| Material: | Steel |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 420x509x632mm (16.5’x20’x24.9′) |
| Fit Screen Size: | 43′-90′ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA & Universal |
| VESA Compatible: | 100×200,200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,400×400,600×300,600×400 |
| Max. Mounting Hole: | 602×400 |
| Weight Capacity: | 60kg (132lbs) |
| Strength Tested: | 4 Times Approved |
| Profile: | 27~420mm (1.1’~16.5′) |
| Tilt Range: | +3°~-12° |
| Swivel Range: | +60°~-60° |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | Yes |
| Installation: | Solid Wall,Double Stud(406mm/450mm) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| AV Component Shelf: | No |
| Direction Indicator: | Yes |
| Cable Management: | Yes |
| Anti-theft: | No |
| Bubble Level: | Hook-on Bubble Level(Included in Components Package) |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |
| Silk Screen: | Can be silkscreen printed |
Product Details
- Brand: Brateck
- Manufacturer Part No: LPA83-466
- Our Part No: MABT-LPA83-466
- Warranty: 60 Months (5 Years)
- Shipping Weight: 6.28 kg
