Description

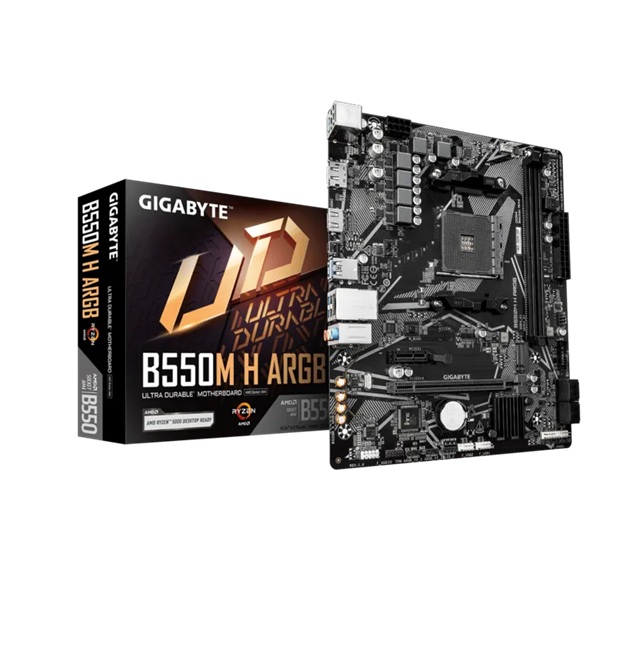

Micro-ATX Motherboard Specifications (AMD B550)
•
Socket / CPU: AM4
•Ryzen 3000 / 4000G / 5000 / 5000G
•
Chipset: AMD B550
•Memory:
•
2× DDR4, up to 64 GB (Dual-Channel)
•
2133–5100 MHz (OC)
•XMP support, ECC (non-ECC mode) / Non-ECC
•
Integrated Graphics:
•DisplayPort 1.4 – up to 5K@60Hz
•HDMI 2.1 – up to 4K@60Hz
•
Max shared memory: 16 GB
•
Expansion Slots:
•
1× PCIe x16 (Gen 4.0 / 3.0)
•1× PCIe 3.0 x1
•Storage:
•
1× M.2 (PCIe 4.0 / 3.0)
•4× SATA 6Gb/s
•RAID 0 / 1 / 10
•
Networking:
•
Realtek Gigabit LAN
•Audio:
•
Realtek HD Audio, up to 7.1-channel
•USB:
•4× USB 3.2 Gen 1 (rear)
•USB 3.2 Gen 1 & USB 2.0 headers
•Internal Headers:
•24-pin ATX, 8-pin CPU power
•CPU fan + 2× system fan
•RGB Gen2 & RGB headers
•TPM, Clear CMOS
•Back Panel I/O:
•DisplayPort, HDMI
•USB 3.2 Gen 1, USB 2.0
•
Q-Flash Plus button
•RJ-45 LAN, Audio jacks
•BIOS:
•AMI UEFI, 128 Mbit
•
Q-Flash & Q-Flash Plus
•OS Support: Windows 10 / 11 (64-bit)
•
Form Factor: Micro-ATX (23.3 × 19.8 cm)
Product Details
- Brand: Gigabyte
- Manufacturer Part No: B550M H ARGB
- Our Part No: MBG-B550MHARGB
- Warranty: 36 Months (3 Years)
- Shipping Weight: 0.70 kg
Buying From BITS Perth
Supplied by BITS Perth, a Western Australian IT provider based in Clarkson. Prices are in AUD and include GST. Flat-rate shipping is $15 Australia-wide and free on orders over $1,000. Orders ship in 2–3 business days with full manufacturer warranty.
Need advice or a bulk quote? Call 0477 032 032 or email admin@bitsperth.com.au.
