Description

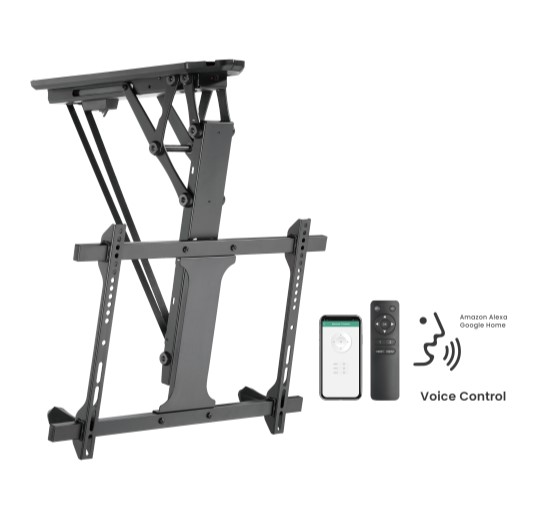

Brateck PLB-M0546AI SMART FLIP DOWN TV CEILING MOUNT POWERED BY TUYA Support most 32′ ~ 70′ TVs (Black)
FEATURES
●Powerful Motor: more stable, strong and durable
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●App Remote Control: remote powered by Tuya App
●Flip Down Design: allows for easy storage, cleared up space and out-of-way safety
●Smart Voice Control: effortlessly adjust the position of the TV with a simple voice command
SPECIFICATIONS
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=2mm cold-rolled sheet,Wall Plate THK=2mm cold-rolled sheet (VESA Panel THK=0.079′ cold-rolled sheet,Wall Plate THK=0.079′ cold-rolled sheet,Bracket Arm THK=0.079′ cold-rolled sheet)
Specifications
| Product Category: | Motorized TV Ceiling Mount |
|---|---|
| Rank: | Standard |
| Material: | Steel,Plastic |
| Surface Finish: | Powder Coating |
| Color: | Matte Black |
| Dimensions: | 725x664x516mm (28.5’x26.1’x20.3′) |
| Fit Screen Size: | 32′-70′ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern : | VESA Only |
| VESA Compatible: | 200×100,200×200,300×200,200×400,400×200,300×300,400×300,400×400,600×400 |
| Max. VESA: | 600×400 |
| Weight Capacity: | 35kg (77lbs) |
| Strength Tested: | 3 Times Approved |
| Profile: | 108mm (4.3′) |
| Tilt Range: | 0~-75° |
| Screen Level: | +2°~-2° |
| Screen Freely Tilting: | No |
| Installation: | Ceiling Mounted |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| AV Component Shelf: | No |
| Cable Management: | Yes |
| Anti-theft: | No |
| Power Supply: | Input：AC 100~240V,50/60Hz；Output：DC 24V, 1.5A |
| Power Cord Length: | 1.5m (4.9ft) |
| Controller Type: | Application Control,Radio Frequency(RF) Remote |
| Bubble Level: | No |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |
| Certification: | CE,FCC,RoHS |
Product Details
- Brand: Brateck
- Manufacturer Part No: PLB-M0546AI
- Our Part No: MABT-PLB-M0546AI
- Warranty: 60 Months (5 Years)
- Shipping Weight: 10.04 kg
