Description

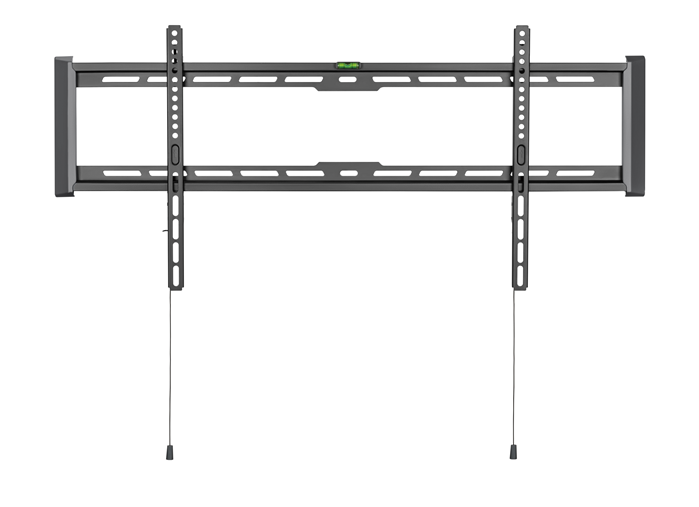

Brateck Ultra-Slim and Heavy-Duty TV Wall Mount For 43′-90′ up to 75KG, VESA 200×200,300×200,400×200,300×300,400×300,400×400,600×400,800×400 Black
FEATURES:
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Ultra-slim design
●Decorative Covers: for a more elegant look
●Heavy-Duty Construction: provides extra strength and durability
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Bubble level included
●Magnetic Strap End: hides itself when not in use.
SPECIFICATIONS
Surface Finish: Powder Coating
Color: Matte Black
Screen Level: 8mm
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Direction Indicator: Yes
Specifications
| Product Category: | Fixed TV Wall Mount |
|---|---|
| Rank: | Standard |
| Material: | Steel, Plastic |
| Metal Sheet Thickness: | Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059′ cold-rolled sheet,Wall Plate THK=0.059′ cold-rolled sheet) |
| Dimensions: | 27x970x430mm (1.1’x38.2’x16.9′) |
| Fit Screen Size: | 43′-90′ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA & Universal |
| VESA Compatible: | 200×200,300×200,400×200,300×300,400×300,400×400,600×400,800×400 |
| Max. Mounting Hole: | 868×405 |
| Weight Capacity: | 75kg (165lbs) |
| Strength Tested: | 4 Times Approved |
| Profile: | 27mm (1.1′) |
| Tilt Range: | +4°~-10° |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| Bubble Level: | Hook-on Bubble Level(Included in Components Package) |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |
Product Details
- Brand: Brateck
- Manufacturer Part No: LP77-48F
- Our Part No: MABT-LP77-48F
- Warranty: 60 Months (5 Years)
- Shipping Weight: 2.56 kg
Buying From BITS Perth
Supplied by BITS Perth, a Western Australian IT provider based in Clarkson. Prices are in AUD and include GST. Flat-rate shipping is $15 Australia-wide and free on orders over $1,000. Orders ship in 2–3 business days with full manufacturer warranty.
Need advice or a bulk quote? Call 0477 032 032 or email admin@bitsperth.com.au.
